Brand: SUNWORTH
Product Origin: China
Module No: SW-B4850
Capacity: 2400Wh
Case Material: metal
Dimensions: 445*410*89mm
BMS: 8S100A
Certificate: CE

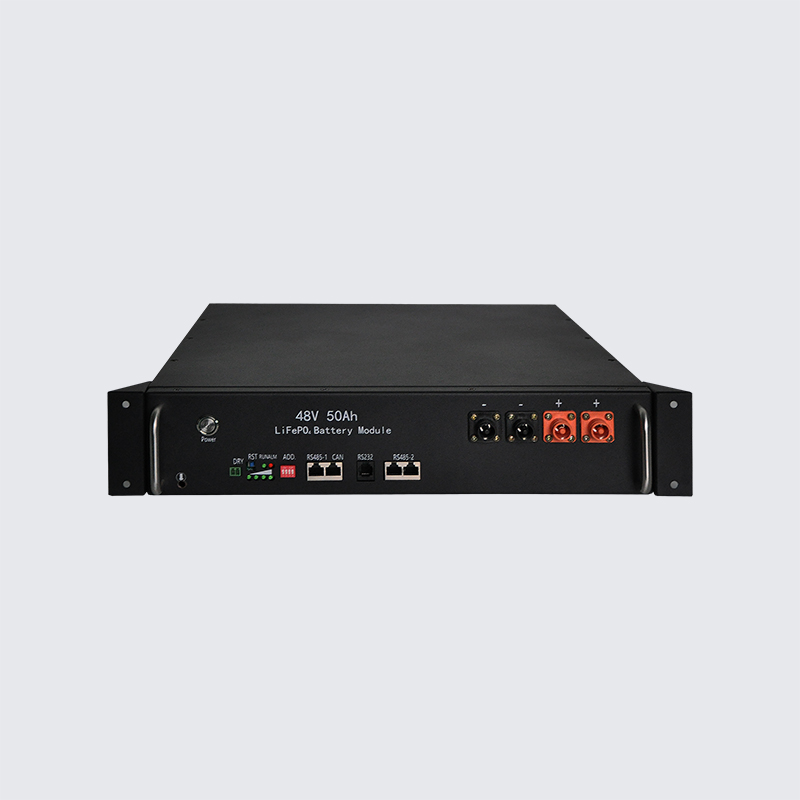

Powercube Lithium Battery 48V50Ah
Description
Advantage:
- Light weight high energy density.
- Long lifespan and less capacity attenuation.
- Modular design enables flexible capacity.
- Build-in BMS to ensure superior safety.
Description：
Sunworth Powercube adopts modular design which makes series-parallel connection available. High performance Grade A battery cells support 5000 times cycles and less capacity decrease during its service life, and ensure high quality, reliability and security. Built in BMS system can provide all-round circuit protection, including over-temperature alarm protection, over-charge and over-discharge protection, short-circuit protection. When connecting to the computer,users can monitor the battery status at any time. Configure RS485 and RS232 communication interfaces, enables the battery module to be perfectly compatible with mainstream inverters. Equipped LDC screen can accurately indicate battery status such as voltage, temperature, state of charge, charging and discharge current, etc.
With the characteristics of simple installation, easy operation, clear indication and convenient maintenance, Sunworth Powercube lithium battery would definitely be your best choice.
| Nodel No. | SW-B4850 | |
| Electrical Characteristics | Nominal Voltage | 48V |
| Nominal Capacity | 50Ah (C5 ,25℃) | |
| Energy | 2400Wh | |
| CycleLife | >2000 cycles@0.2C 100%DOD | |
| Months Self Discharge | <3% | |
| Standard Charge | Standard charge current | 10A |
| Maximum charge current | 100A | |
| Standard Discharge | Standard discharge current | 10A |
| Maximum discharge current | 100A | |
| Discharge cut-off voltage | 37.5V | |

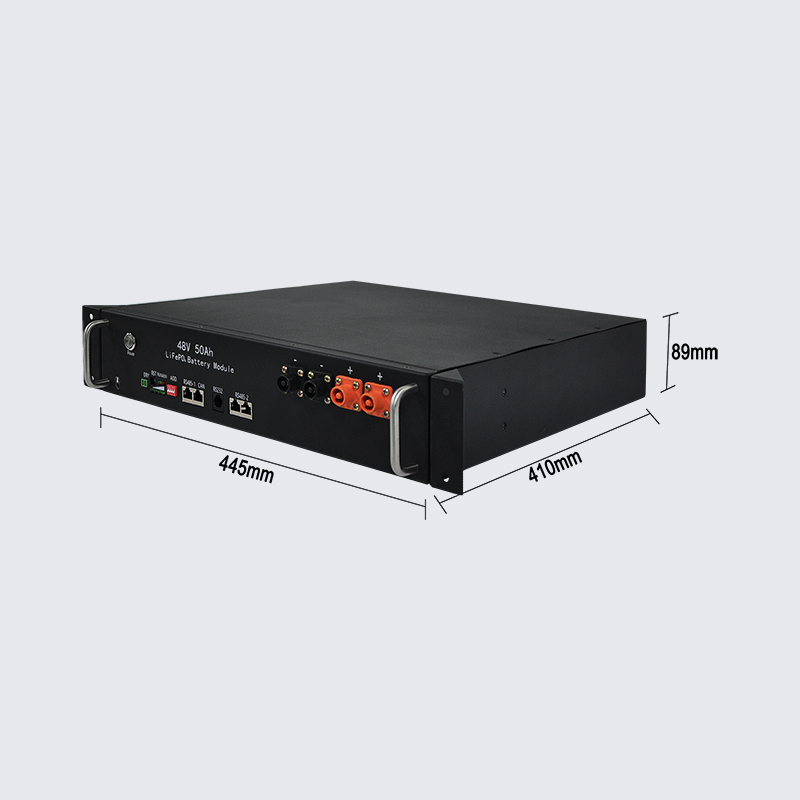

| Mechanical | Dimensions (in./mm.) | 445*410*89mm |
| Weight (lbs./kg.) | ≦25Kg | |
| Protocol (optional) | RS485/RS232/CAN | |
| Operating Temperature | Charge Temperature | 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity |
| Discharge Temperature | -20 ℃ to 60 ℃ (-4Fto 140F) @60±25% Relative Humidity | |
Q1: How is the warranty of the product?
A: We provide 3 years warranty for the product.
Q2: Do you provide after-sales services?
A: We provide technical consulting services. If you have any technical problems during the use of the product,
please feel free to contact us, and we will provide you with solutions within 24 hours.
Q3: Can I get test sample?
A: Sample will be charged a cost, but the cost will be refunded after the bulk order.
Q4: Do you have any MOQ limit ?
A: MOQ 100. The larger the order quantity, the better the price. No matter how much you order, we will provide
you with the most favorable price.
Q5: Can I order customized products?
A: Please let us know your requirements firstly and we will customize the products according to your requirements
and confirm the final design with you. We warmly welcome OEM/ODM for bulk order.
Q6: Does the package contain accessories?
A: We will configure accessories for you according to your requirements.
