Brand: SUNWORTH
Product Origin: China
Module No: SW-P128200
Capacity: 2560Wh
Case Material: plastic
Dimensions: 552*242*220mm
BMS: 8S100A
Certificate: CE

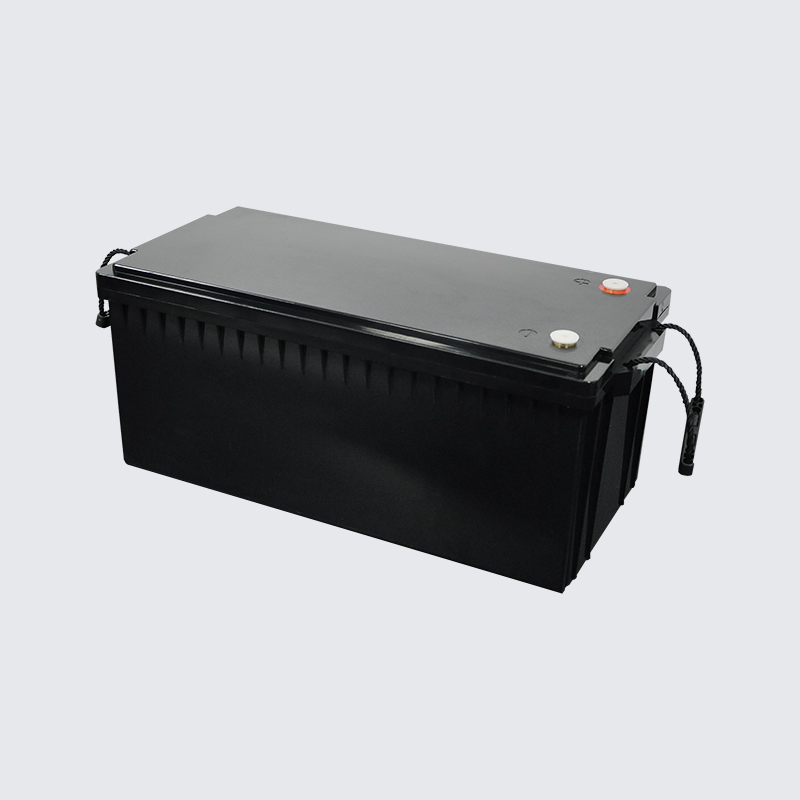

LFP Lithium Battery 12.8V200Ah
Description
Advantage:
- Light weight high energy density.
- Long lifespan and less capacity attenuation.
- Standard size and portable.
- Build-in BMS to ensure superior safety.
Description：
Sunworth Plastic lithium battery use high performance Grade A battery cells, which support 5000 times cycle and less capacity decrease during its service life. Build-in BMS provides all-round circuit protection, including over-heat alarm protection, over-charge and over-discharge protection, short-circuit protection. Protection level IP67,which can prevent the battery from being eroded by water and dust. Simple operation enables series-parallel connection available to meet different power demands.
Compared with lead-acid batteries, lithium batteries have the advantages of safety, reliability, lighter weight and high energy density. Adopts standard size, which can replace the previous lead-acid battery with equal size. With the characteristics of high cost performance, compact and portable, Sunworth Plastic lithium battery would definitely be your best alternative choice.
| Nodel No. | SW-P128200 | |
| Electrical Characteristics | Nominal Voltage | 12.8V |
| Nominal Capacity | 200Ah (C5 ,25℃) | |
| Energy | 2560Wh | |
| CycleLife | >2000 cycles@0.2C 100%DOD | |
| Months Self Discharge | <3% | |
| Standard Charge | Standard charge current | 40A |
| Maximum charge current | 100A | |
| Standard Discharge | Standard discharge current | 40A |
| Maximum discharge current | 100A | |
| Discharge cut-off voltage | 10V | |
| Mechanical | Dimensions (in./mm.) | 552*242*220mm |
| Weight (lbs./kg.) | ≦25Kg | |
| Protocol (optional) | / | |
| Operating Temperature | Charge Temperature | 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity |
| Discharge Temperature | -20 ℃ to 60 ℃ (-4Fto 140F) @60±25% Relative Humidity | |
Q1: How is the warranty of the product?
A: We provide 3 years warranty for the product.
Q2: Do you provide after-sales services?
A: We provide technical consulting services. If you have any technical problems during the use of the product,
please feel free to contact us, and we will provide you with solutions within 24 hours.
Q3: Can I get test sample?
A: Sample will be charged a cost, but the cost will be refunded after the bulk order.
Q4: Do you have any MOQ limit ?
A: MOQ 100. The larger the order quantity, the better the price. No matter how much you order, we will provide
you with the most favorable price.
Q5: Can I order customized products?
A: Please let us know your requirements firstly and we will customize the products according to your requirements
and confirm the final design with you. We warmly welcome OEM/ODM for bulk order.
Q6: Does the package contain accessories?
A: We will configure accessories for you according to your requirements.
