Brand: SUNWORTH
Product Origin: China
Power Range: 580W
Solar Cell: Monocrystalline
Certificate: CE/TUV/CB
Warranty: 12-year product warranty.
25-year linear power output warranty.

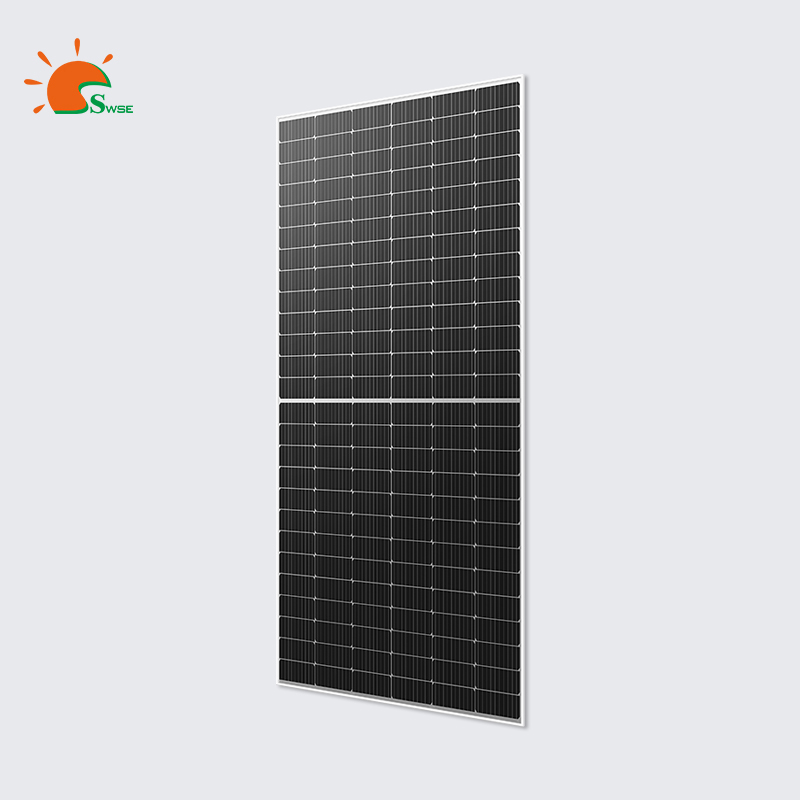

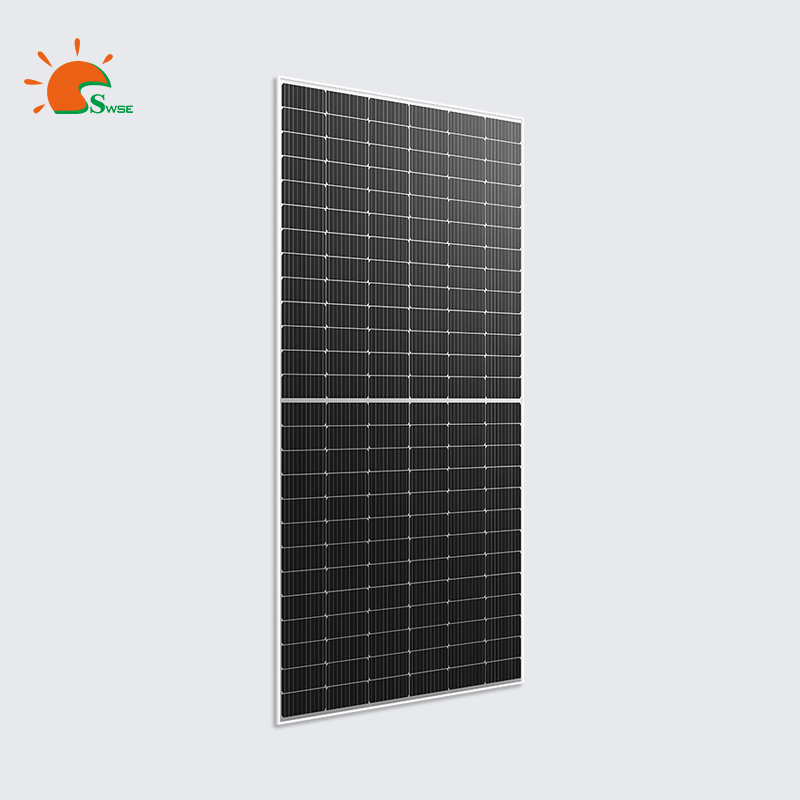

Monocrystalline Solar Panel 580W
Description
Descriptions:
Sunworth provides high-quality 580 Watt Monocrystalline Solar Panels at a competitive monocrystalline solar panel price, featuring:
- High Efficiency- Monocrystalline solar panel efficiency maintained at 22.45%.
- Durability-Lower LID attenuation.
- Superior Performance – Low light conditions.
- Superior Design- Outstanding temperature coefficient characteristics.
- Reliability- Use of quality materials.
- Quality Assurance- 100% EL tested.
- Durability- TUV certified in extreme environmental.
- Flexibility- Customized specifications are available.
Applications:
As a leading monocrystalline solar panel supplier, Sunworth brings you high-quality 580Watt Monocrystalline Solar Panels. They can be effectively utilized in various public applications：
- Solar Parks and Farms
- Public Infrastructure
- Street Lighting
- Emergency Services
- Water Treatment Plants
- Public Transportation Hubs
| Electrical Characteristics | |
| Model No. | SW580M |
| Maximum power (Pmax) | 580W |
| Max-power voltage (Vmp) | 42.59V |
| Max-power current (Imp) | 13.62A |
| Open-circuit voltage (Voc) | 51.47V |
| Short-circuit current (Isc) | 14.37A |
| Module efficiency | 22.45% |
| Operating temperature | -40℃~+85℃ |
| Maximum system voltage | 1500Vdc |
| Maximum series fuse rating | 30A |
| Power tolerance | ±3% |
| *STC condition：1000 W/m²,1.5AM and 25℃ cell temperature. |
|
| Temperature Characteristics | |
| NOCT | 46℃±2℃ |
| Temperature co-efficient of Pmax | -0.36%/℃ |
| Temperature co-efficient of Voc | -0.28%/℃ |
| Temperature co-efficient of Isc | 0.048%/℃ |
| Mechanical Characteristics | |
| Mono power | 580W |
| Cell type | monocrystalline |
| Cell arrangement | 144(6*24) |
| Dimensions | 2279*1134*35mm |
| Weight | 28.6kg |
| Front cover | 3.2mm tempered glass |
| Frame material | anodized aluminium alloy |
| Junction box | IP67 rated |
| Output cables | 4mm²,length：（+）300mm/（-）300mm |
| Packing | |
| Container | 40’HC |
| Pieces/pallet | 31 |
| Pieces/container | 620 |
Q1:Do you provide after-sales service?
A:More than 50 professional operation and maintenance engineers to solve problems and provide service for you at any time.
Q2:What solar solutions can you provide?
A:Residential/Home solar system, Rooftop solar power station, Large-scale ground-mounted solar power station,Agriculture-complementary Solar Power Station.
Q3:What is the lead time?
A:It will take about 5-20 days for production depending on the quantity.
Q4:How long is the warranty of your products?
A:5-year Warranty for Materials and Processing 25-year Warranty for Extra Linear Power Output.
Q5:Can I have sample before formal order?
A:Of course.
Q6:OEM is available?
A:Acceptable OEM Service
Q7：Where can I find information on monocrystalline solar panel prices?
A：Please click “Get A Quote” or feel free to contact us.
