Brand: SUNWORTH
Product Origin: China
Power Range: 490W-505W
Solar Cell: Monocrystalline
Certificate: CE/TUV/CB
Warranty: 12-year product warranty.
25-year linear power output warranty.

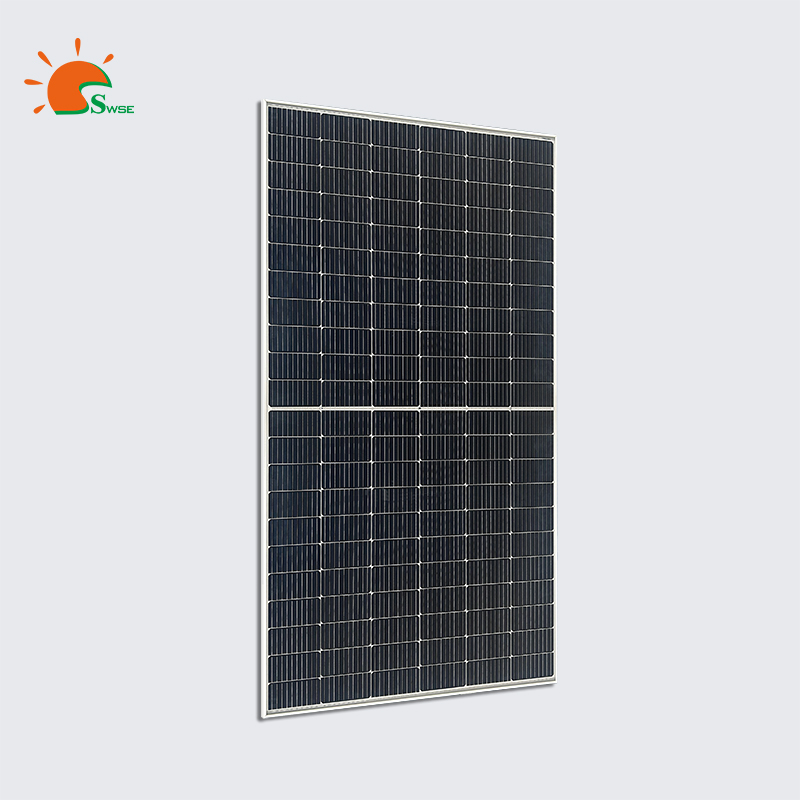

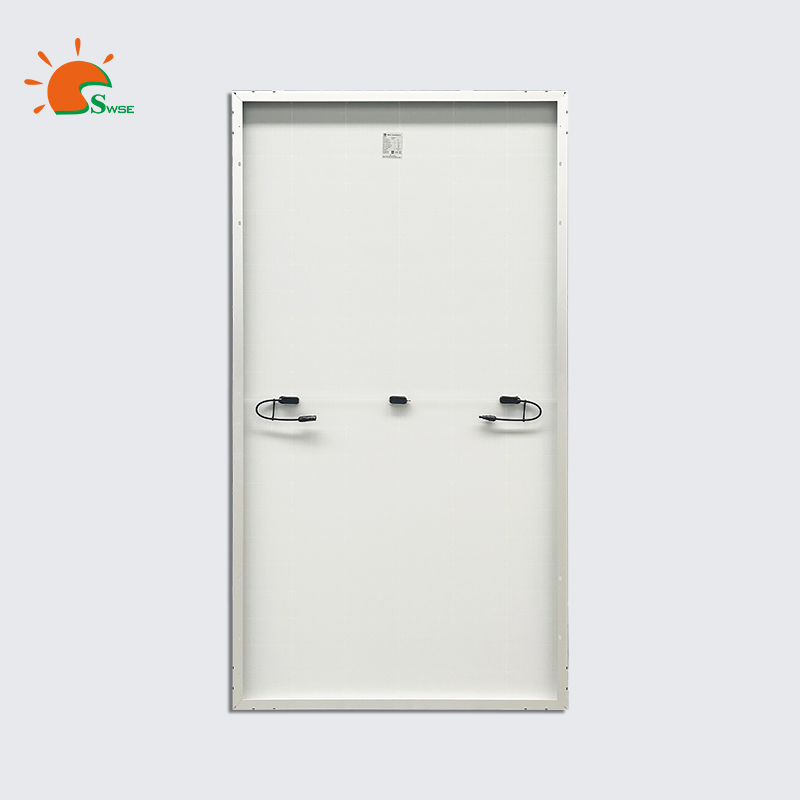

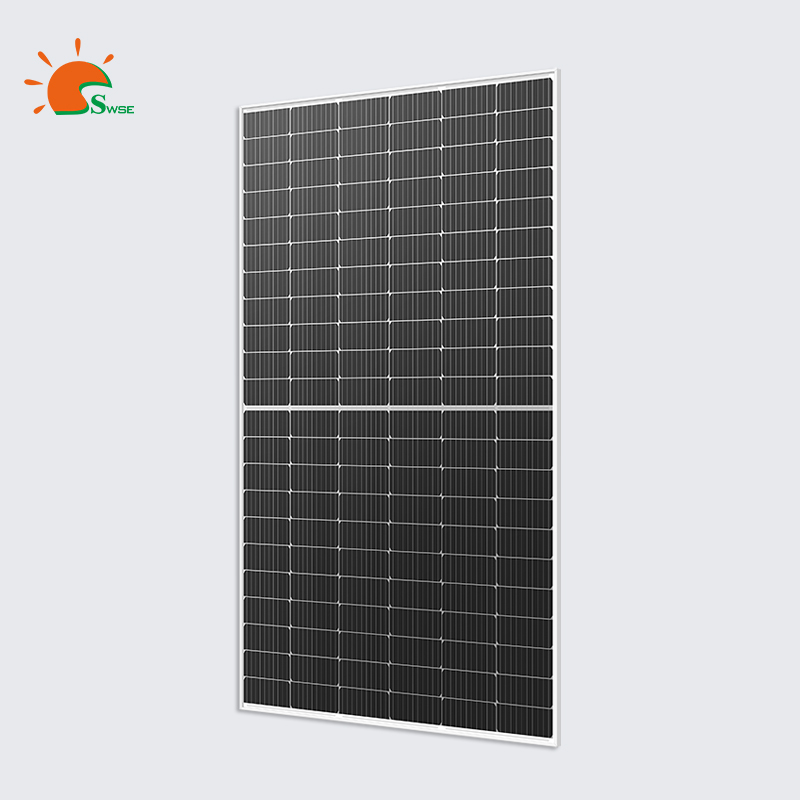

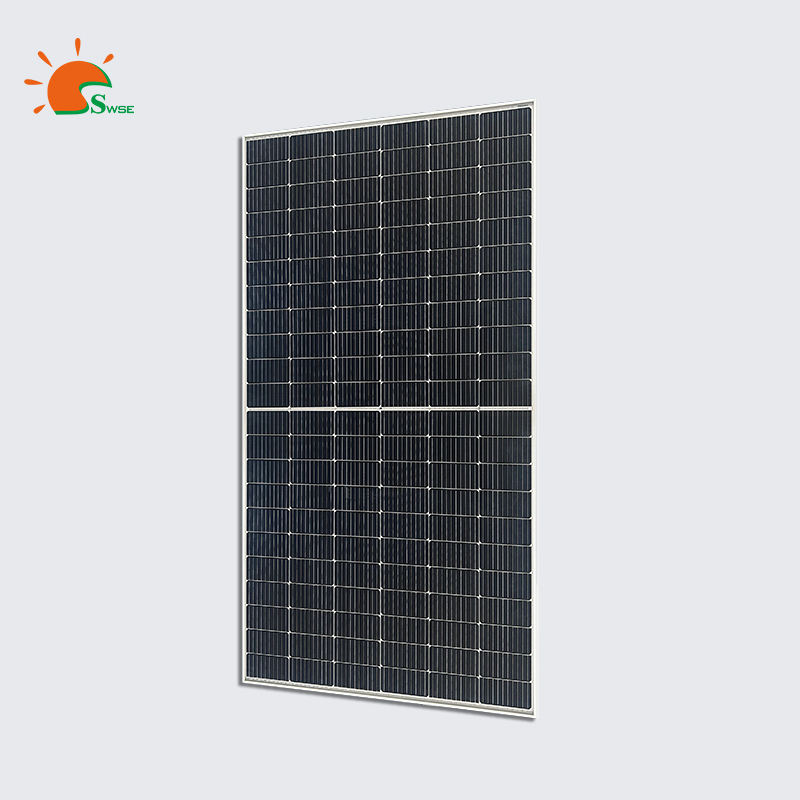

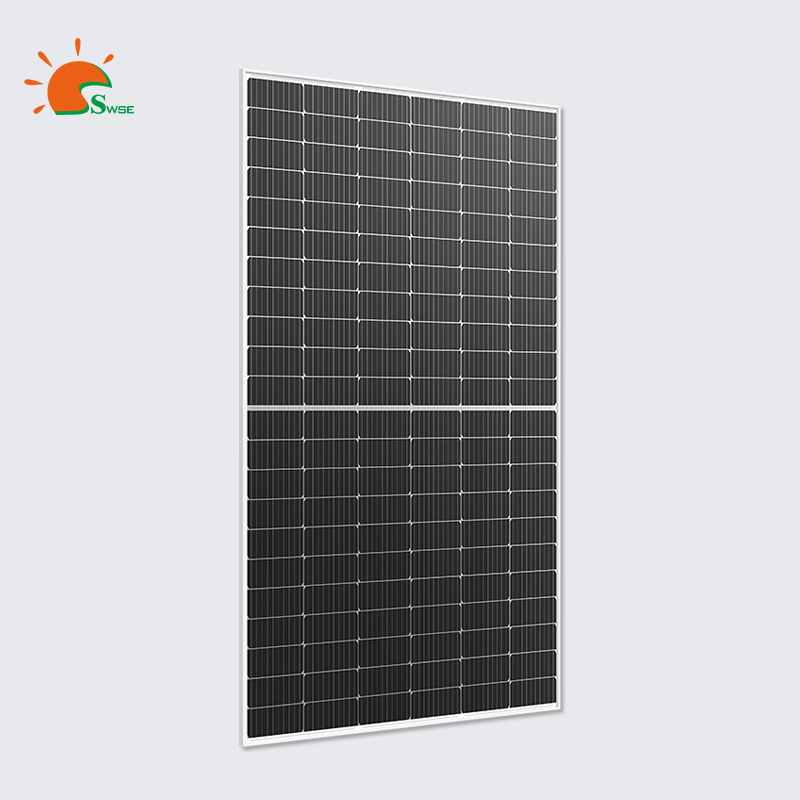

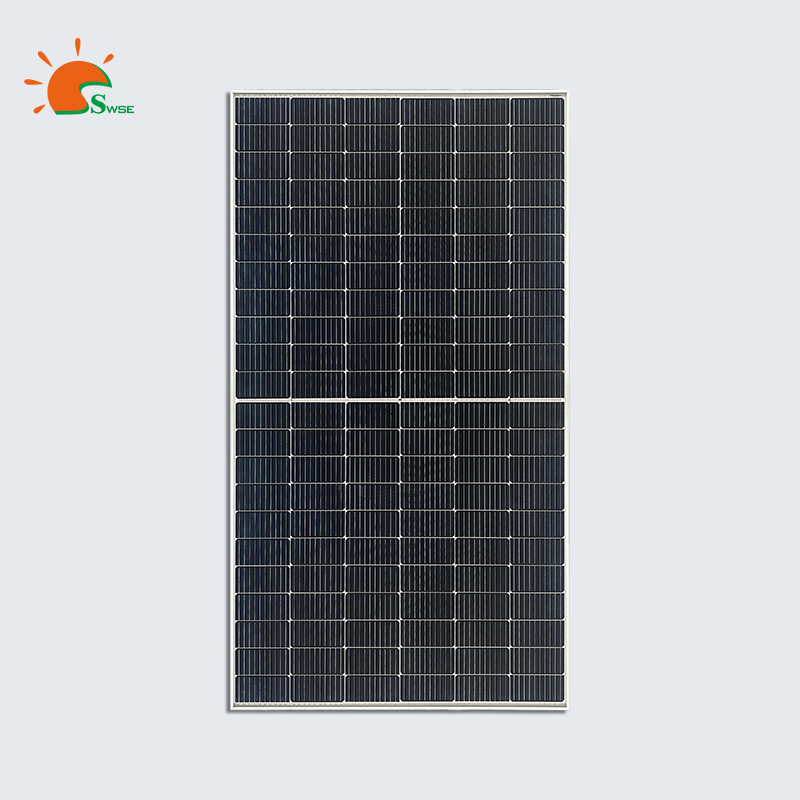

Monocrystalline Solar Panel 490W~505W
Description
Descriptions:
- High-efficiency solar cells to maintain solar panel efficiency at 21.27%.
- Lower LID attenuation.
- Excellent performance under weak light conditions.
- Excellent temperature coefficient characteristics.
- Premium materials ensure reliability.
- 100% EL testing ensures top quality.
- Extreme environment durability certified by TUV.
- Custom specifications available.
| Electrical Characteristics | ||||
| Model No. | SW490M | SW495M | SW500M | SW505M |
| Maximum power (Pmax) | 490W | 495W | 500W | 505W |
| Max-power voltage (Vmp) | 37.15V | 37.29V | 37.60V | 37.95V |
| Max-power current (Imp) | 13.19A | 13.28A | 13.30A | 13.31A |
| Open-circuit voltage (Voc) | 43.84V | 44.0V | 44.36V | 44.78V |
| Short-circuit current (Isc) | 13.98A | 14.07A | 14.09A | 14.11A |
| Module efficiency | 20.64% | 20.85% | 21.05% | 21.27% |
| Operating temperature | -40℃~+85℃ | |||
| Maximum system voltage | 1500Vdc | |||
| Maximum series fuse rating | 25A | |||
| Power tolerance | ±3% | |||
| *STC condition：1000 W/m²,1.5AM and 25℃ cell temperature. | ||||
| Temperature Characteristics | ||||
| NOCT | 46℃±2℃ | |||
| Temperature co-efficient of Pmax | -0.36%/℃ | |||
| Temperature co-efficient of Voc | -0.28%/℃ | |||
| Temperature co-efficient of Isc | 0.048%/℃ | |||
| Mechanical Characteristics | ||||
| Mono power | 490W/495W/500W/505W | |||
| Cell type | monocrystalline | |||
| Cell arrangement | 132(6*22) | |||
| Dimensions | 2094*1134*35mm | |||
| Weight | 26.3kg | |||
| Front cover | 3.2mm tempered glass | |||
| Frame material | anodized aluminium alloy | |||
| Junction box | IP67 rated | |||
| Output cables | 4mm²,length：（+）300mm/（-）300mm | |||
| Packing | ||||
| Container | 40’HC | |||
| Pieces/Pallet | 31 | |||
| Pieces/Container | 682 | |||
Monocrystalline Solar Panel 490W-505W
Sunworth new CB certificate for solar panel
Q1:Do you provide after-sales service?
A:More than 50 professional operation and maintenance engineers to solve problems and provide service for you at any time.
Q2:What solar solutions can you provide?
A:Residential/Home solar system, Rooftop solar power station, Large-scale ground-mounted solar power station,Agriculture-complementary Solar Power Station.
Q3:What is the lead time?
A:It will take about 5-20 days for production depending on the quantity.
Q4:How long is the warranty of your products?
A:5-year Warranty for Materials and Processing 25-year Warranty for Extra Linear Power Output.
Q5:Can I have sample before formal order?
A:Of course.
Q6:OEM is available?
A:Acceptable OEM Service
