Brand: SUNWORTH
Product Origin: China
Power Range: 220W-230W
Solar Cell: Monocrystalline
Certificate: CE/TUV/CB
Warranty: 12-year product warranty.
25-year linear power output warranty.

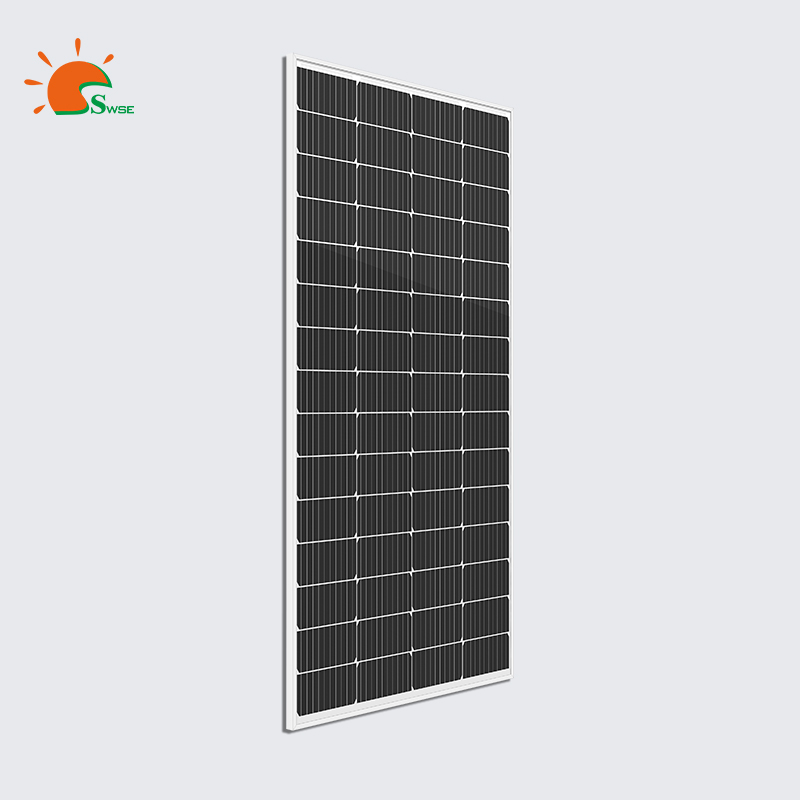

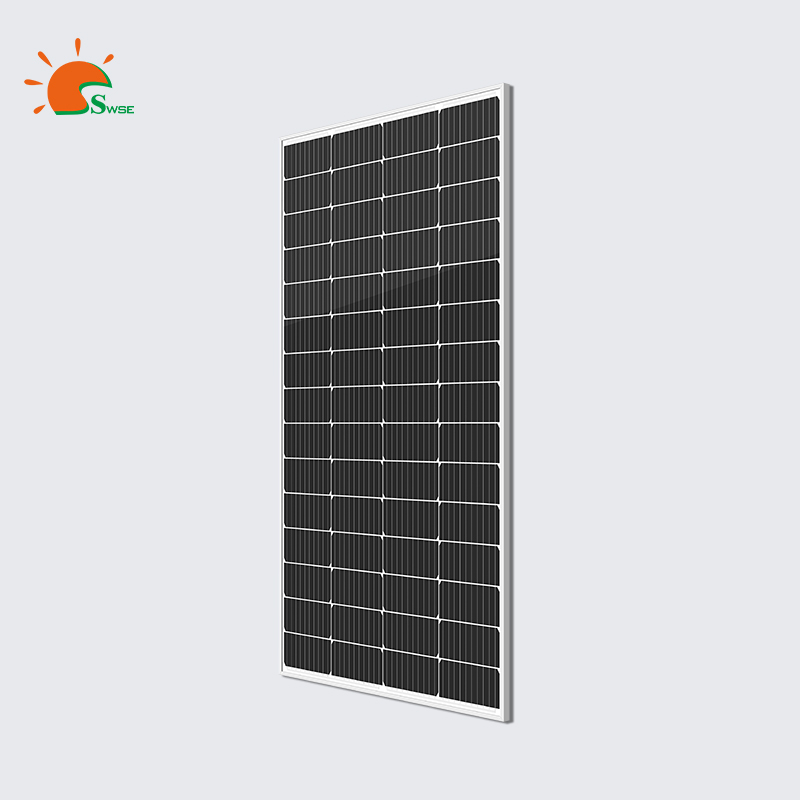

Monocrystalline Solar Panel 220W~230W
Description
Descriptions:
- High-efficiency solar cells to maintain solar panel efficiency at 20.91%.
- Lower LID attenuation.
- Excellent performance under weak light conditions.
- Excellent temperature coefficient characteristics.
- Premium materials ensure reliability.
- 100% EL testing ensures top quality.
- Extreme environment durability certified by TUV.
- Custom specifications available.
| Electrical Characteristics | |||
| Model No. | SW220M | SW225M | SW230M |
| Maximum power (Pmax) | 220W | 225W | 230W |
| Max-power voltage (Vmp) | 33.6V | 34.2V | 34.5V |
| Max-power current (Imp) | 6.55A | 6.58A | 6.67A |
| Open-circuit voltage (Voc) | 39.98V | 40.67V | 41.05V |
| Short-circuit current (Isc) | 6.94A | 6.97A | 7.07A |
| Module efficiency | 20.01% | 20.45% | 20.91% |
| Operating temperature | -40℃~+85℃ | ||
| Maximum system voltage | 1000Vdc | ||
| Maximum series fuse rating | 15A | ||
| Power tolerance | ±3% | ||
| *STC condition：1000 W/m²,1.5AM and 25℃ cell temperature. | |||
| Temperature Characteristics | |||
| NOCT | 46℃±2℃ | ||
| Temperature co-efficient of Pmax | -0.36%/℃ | ||
| Temperature co-efficient of Voc | -0.28%/℃ | ||
| Temperature co-efficient of Isc | 0.048%/℃ | ||
| Mechanical Characteristics | |||
| Mono power | 220W/225W/ 230W | ||
| Cell type | Mono 182*91mm | ||
| Cell arrangement | 60(4*15) | ||
| Dimensions | 1438*765*30mm | ||
| Weight | 11.5kg | ||
| Front cover | 3.2mm tempered glass | ||
| Frame material | Anodized aluminium alloy | ||
| Junction box | IP65 rated | ||
| Output cables | 4mm²,Length 900mm+MC4 | ||
| Packing Ref. | |||
| Container | 20’GP | 40’HC | |
| Pieces/pallet | 2 | 2 | |
| Pieces/container | 616 | 1488 | |
Q1:Do you provide after-sales service?
A:More than 50 professional operation and maintenance engineers to solve problems and provide service for you at any time.
Q2:What solar solutions can you provide?
A:Residential/Home solar system, Rooftop solar power station, Large-scale ground-mounted solar power station,Agriculture-complementary Solar Power Station.
Q3:What is the lead time?
A:It will take about 5-20 days for production depending on the quantity.
Q4:How long is the warranty of your products?
A:5-year Warranty for Materials and Processing 25-year Warranty for Extra Linear Power Output.
Q5:Can I have sample before formal order?
A:Of course.
Q6:OEM is available?
A:Acceptable OEM Service
