Description

Descriptions:

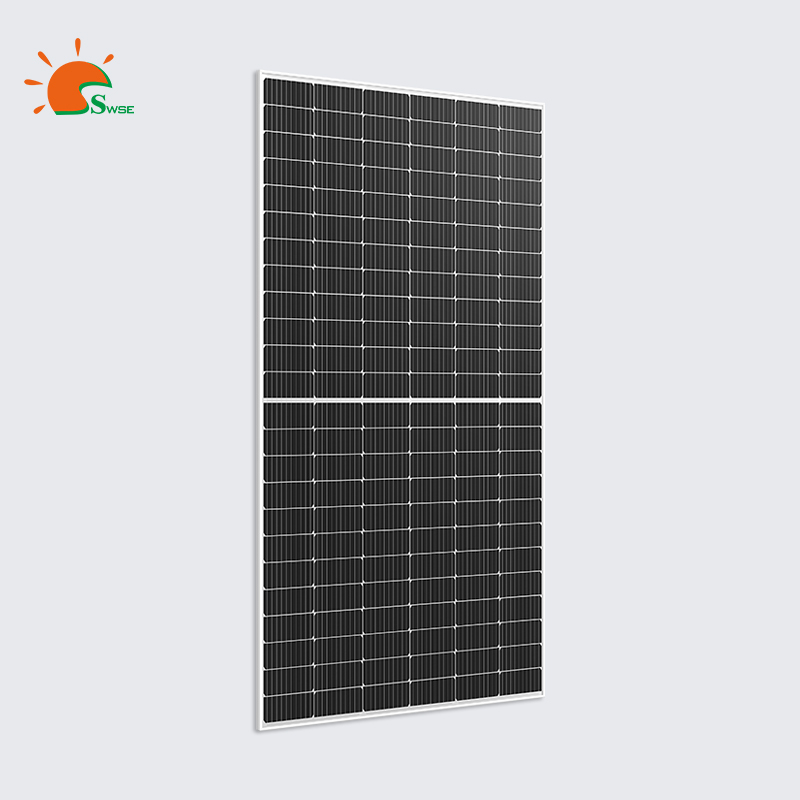

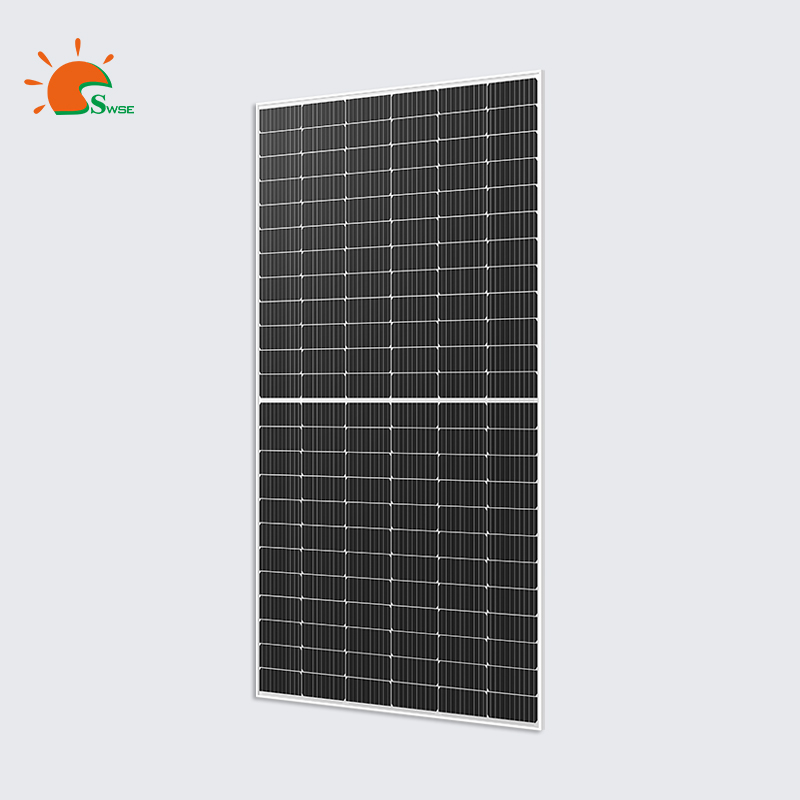

Sunworth provides high-quality 525~550 Watt Monocrystalline Solar Panels at a competitive monocrystalline solar panel price, featuring:

  • High Efficiency- Monocrystalline solar panel efficiency maintained at 21.28%.
  • Durability-Lower LID attenuation.
  • Superior Performance – Low light conditions.
  • Superior Design- Outstanding temperature coefficient characteristics.
  • Reliability- Use of quality materials.
  • Quality Assurance- 100% EL tested.
  • Durability- TUV certified in extreme environmental.
  • Flexibility- Customized specifications are available.
  •

Applications:

As a leading monocrystalline solar panel supplier, Sunworth brings you high-quality 525~550 Watt Monocrystalline Solar Panels. They can be effectively utilized in various public applications：

  • Solar Parks and Farms
  • Public Infrastructure
  • Street Lighting
  • Emergency Services
  • Water Treatment Plants
  • Public Transportation Hubs
Electrical Characteristics
Model No. SW525M SW530M SW540M SW550M
Maximum power (Pmax) 525W 530W 540W 550W
Max-power voltage (Vmp) 40.68V 40.87V 41.13V 41.51V
Max-power current (Imp) 12.91A 12.97A 13.13A 13.25A
Open-circuit voltage (Voc) 48.01V 48.22V 48.53V 48.98V
Short-circuit current (Isc) 13.68A 13.73A 13.89A 14.01A
Module efficiency 20.31% 20.51% 20.89% 21.28%
Operating temperature -40℃~+85℃
Maximum system voltage 1500Vdc
Maximum series fuse rating 30A
Power tolerance ±3%
*STC condition：1000 W/m²,1.5AM and 25℃ cell temperature.
Temperature Characteristics
NOCT 46℃±2℃
Temperature co-efficient of Pmax -0.36%/℃
Temperature co-efficient of Voc -0.28%/℃
Temperature co-efficient of Isc 0.048%/℃
Mechanical Characteristics
Mono power 525W/530W/540W/550W
Cell type monocrystalline
Cell arrangement 144(6*24)
Dimensions 2279*1134*35mm
Weight 28.6kg
Front cover 3.2mm tempered glass
Frame material anodized aluminium alloy
Junction box IP67 rated
Output cables 4mm²,length：（+）300mm/（-）300mm
Packing
Container 40’HC
Pieces/pallet 31
Pieces/container 620

Q1:Do you provide after-sales service?
A:More than 50 professional operation and maintenance engineers to solve problems and provide service for you at any time.

Q2:What solar solutions can you provide?
A:Residential/Home solar system, Rooftop solar power station, Large-scale ground-mounted solar power station,Agriculture-complementary Solar Power Station.

Q3:What is the lead time?
A:It will take about 5-20 days for production depending on the quantity.

Q4:How long is the warranty of your products?
A:5-year Warranty for Materials and Processing 25-year Warranty for Extra Linear Power Output.

Q5:Can I have sample before formal order?
A:Of course.

Q6:OEM is available?
A:Acceptable OEM Service

Q7：Where can I find information on monocrystalline solar panel prices?

A：Please click “Get A Quote” or feel free to contact us.
